R Seies Engine for Generator Set
2022/04/20 00:00

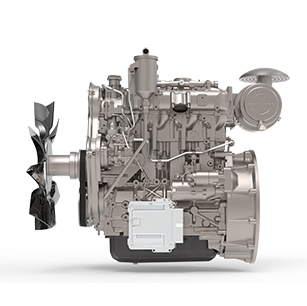

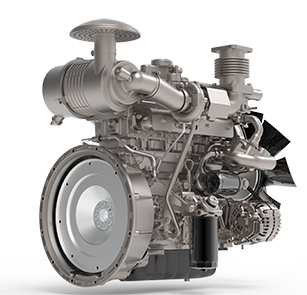

R系列电站发动机 图1(放左侧) (首页的产1111112品展示用这个图片).jpgR系列电站发动机 图21111111111111(放右侧).jpg

Description:

The R series diesel engine is a product of the same name introduced from the Italian VM company. It is famous for its strong power and excellent performance in the European market. The comprehensive fuel consumption is 10% lower than that of similar competing products, which can greatly improve the attendance rate and reduce operating costs.

The world's advanced technology is the ideal supporting power for 20~75 kW common generator sets; its comprehensive indicators such as vibration noise, fuel consumption, plateau performance, and complete machine life are all at the leading level in the industry. Suitable for compact ultra-quiet power station units. At the same time, it is also the preferred product for high-speed power stations and range extender power systems.


Features:

1.Meet the supporting requirements of one-machine dual-frequency and two-stage motors (3000

rpm), and meet T3 emissions;

2.Platform synchronization products for automobiles, high reliability;

3.The performance index of the whole machine is superior;

4.Strong cold start and plateau capability;

5.Small size, light weight, energy saving and fuel saving;

6.Excellent NVH performance to meet ultra-quiet design requirements;

7.The market has a large quantity and is easy to maintain;


R Series Technical Parameters
TypeIn-Line、4-Stroke、Direct injection、Exhaust gas turbocharg、WaterAirCoolingCylinder No.4
Bore&Stroke94x100mmDisplacement2.776L
Min.BSFC191g/kw.hNoise≤92DB(A)
Oil Capacity8LCooling System Capacity12.5—14.1L
Speed Control ModeElectronic Speed Control     (HPCR)Flywheel/HousingSAE3# & 11.5#
H Series Model List
Emissions Standard:Stage III
Engine ModelAspirationRated Power kWRated Speed r/minStandby Power kwNet Weight kgDimensions mm(LxWxH)
4RTAA2.8-G39Turbo & Intercooler271500302451027x674x824
4RTAA2.8-G31Turbo & Intercooler381500422451027x674x824
4RTAA2.8-G32Turbo & Intercooler511500562451027x674x824
4RTAA2.8-G37Turbo & Intercooler621500682451027x674x824


R系列 外形尺寸图 1.png

R系列 外形尺寸图 2.png
