Z Seies Engine for Generator Set
2022/04/20 00:00

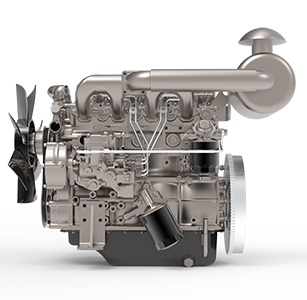

Z系列发电用发动111111机  图(1) 4Z2.jpg
Z系列发电用发动机 111 图(2)  4ZTAA4.jpg
4Z2.3机型 4ZTAA4.1机型

Description:

The Z series engine is jointly developed by Shanghai New Power Automobile Technology Co., Ltd. and well-known internal combustion engine research institutes at home and abroad. Relying on the company's more than 70 years of experience in diesel engine development, production and quality management, it ensures high reliability, low fuel consumption, and low emissions. , The product has good cold start performance; the displacement ranges from 1.1L to 4.1L, and the power covers from 10kW to 81kW, which is an ideal supporting power for low-power generator sets.


Features:

1.Using direct injection technology, it has excellent starting performance;

2.Bosch non-road dedicated high pressure common rail system is adopted, with excellent performance, emission and reliability;

3.The structure of the whole machine is compact, and the vibration and noise are small.

4.The professional team guarantees to provide the necessary technical support for customers at any time;

5.High-quality after-sales service and sufficient spare parts supply solve the worries of users.

Z Series Technical Parameters
Emissions Standard:Stage II
Engine ModelAspirationCylinderNo.xBorexStrokeRated Power kWRated Speed r/minStandby Power kwNet Weight kgDimensions mm(LxWxH)
4Z2.3-G11Natural Inspiration4x85x10016150018220744x545x635
4Z2.3-G21Natural Inspiration4x85x10016150018220744x545x635
4Z2.7-G11Natural Inspiration4x90x10522150024260750x565x696
4Z2.7-G21Natural Inspiration4x90x10522150024260750x565x696
4Z3.0-G11Natural Inspiration4x95x10527150030265750x565x700
4Z3.0-G21Natural Inspiration4x95x10527150030265750x565x700
4Z3.2-G11Natural Inspiration4x98x10532150035265750x565x700
4Z3.2-G21Natural Inspiration4x98x10532150035265750x565x700
4ZT3.2-G11Turbo4x98x10539150044275750x600x765
4ZT3.2-G21Turbo4x98x10539150044275750x600x765
4ZT3.5-G21Turbo4x98x11549150054285750x600x765
4ZT4.1-G21Turbo4x105x11860150066360815x645x820
4ZTAA4.1-G21Turbo & Intercooler4x105x11864150070370815x661x770
Engine ModelDisplacementSpeed Control ModeMin.BSFC g/kw.hOil Capacity LCoolant Capacity LNoiseDB(A)Flywheel/Housing
4Z2.3-G112.3Mechanical governor
(MechanicalPump)
2255.54.6594SAE4#7.5〞
4Z2.3-G212.3ESC(MechanicalPump)2255.54.6594SAE4#7.5〞
4Z2.7-G112.7Mechanical governor
(MechanicalPump)
2256.5595SAE4#7.5〞
4Z2.7-G212.7ESC(MechanicalPump)2206.5595SAE4#7.5〞
4Z3.0-G113Mechanical governor
(MechanicalPump)
2206.55.7597SAE4#7.5〞
4Z3.0-G213ESC(MechanicalPump)2206.55.7597SAE4#7.5〞
4Z3.2-G113.2Mechanical governor
(MechanicalPump)
2206.55.7597SAE4#7.5〞
4Z3.2-G213.2ESC(MechanicalPump)2206.55.7597SAE4#7.5〞
4ZT3.2-G113.2Mechanical governor
(MechanicalPump)
2206.55.7597SAE4#7.5〞
4ZT3.2-G213.2ESC(MechanicalPump)2156.55.7597SAE4#7.5〞
4ZT3.5-G213.5ESC(MechanicalPump)2106.55.7597SAE3#11.5〞
4ZT4.1-G214.1ESC(MechanicalPump)2096.58.54102SAE3#11.5〞
4ZTAA4.1-G214.1ESC(MechanicalPump)2096.58.54102SAE3#11.5〞
Emissions Standard:Stage III
Engine ModelAspirationCylinderNo.xBorexStrokeRated Power kWRated Speed r/minStandby Power kwNet Weight kgDimensions mm(LxWxH)
3Z1.1-G42Natural Inspiration3x78x78.410150011110629x417x630
3ZT1.1-G42Turbo3x78x78.412.8150014.1110629x417x630
4ZTAA4.1-G31Turbo & Intercooler4x105x11874150081370815x661x770
Engine ModelDisplacementSpeed Control ModeMin.BSFC g/kw.hOil Capacity LCoolant Capacity LNoiseDB(A)Flywheel/Housing
3Z1.1-G421.1ESC(HPCR)23041.384SAE5#6.5〞
3ZT1.1-G421.1ESC(HPCR)22041.384SAE5#6.5〞
4ZTAA4.1-G314.1ESC(EUP)2096.58.54102SAE3#11.5〞

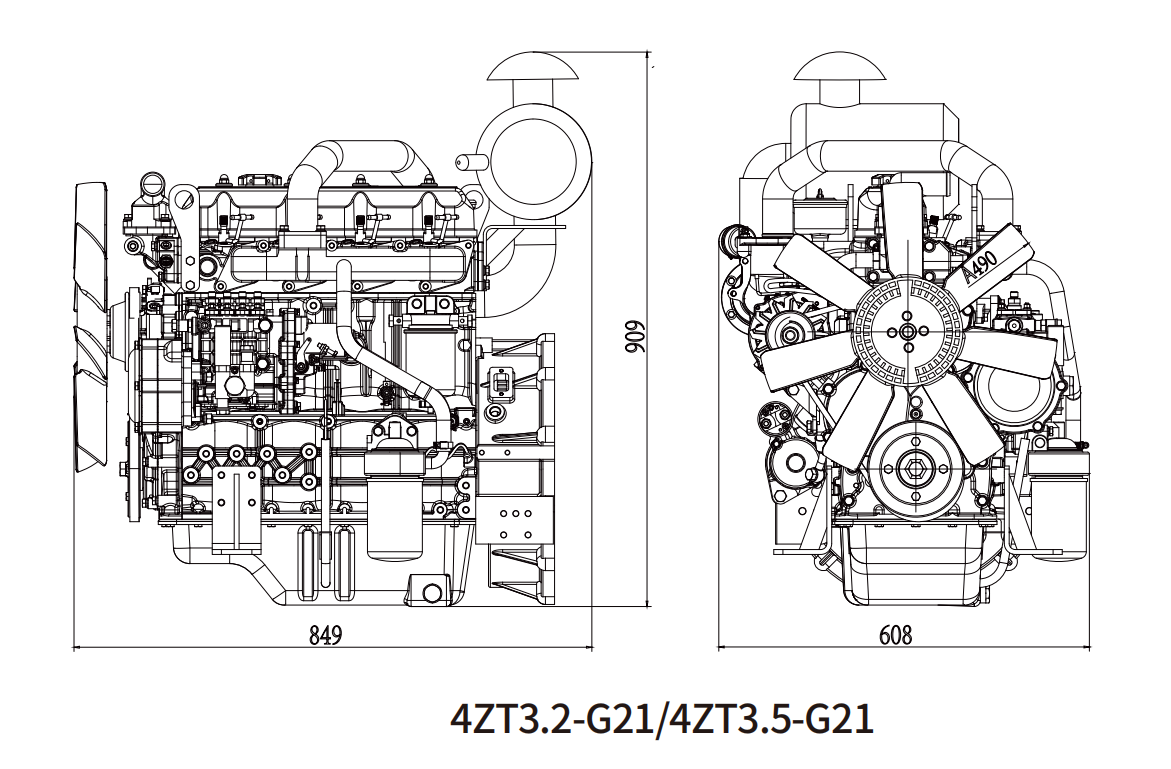

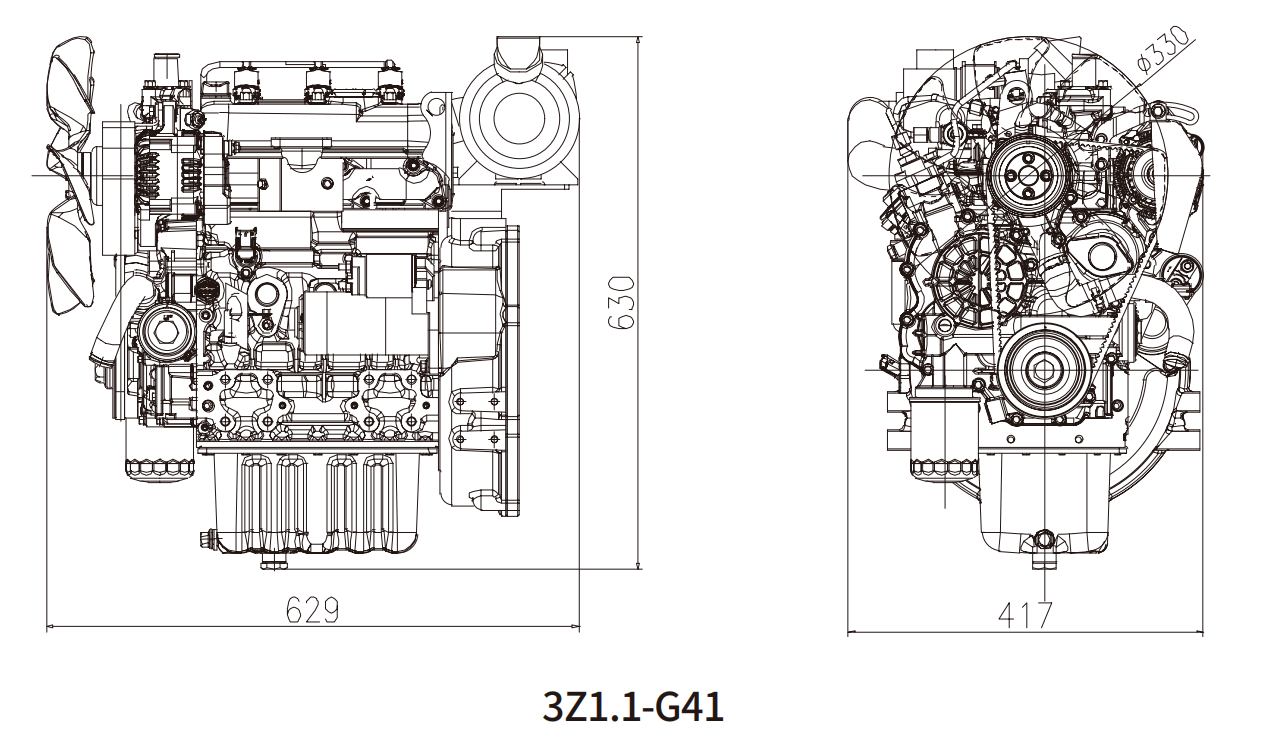

Z系列 外形尺寸图 1.png

Z系列 外形尺寸图 2.png


Z系列 外形尺寸图 3.png


Z系列 外形尺寸图 4.png
