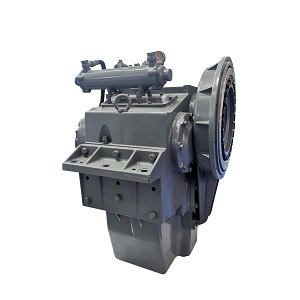

Marine Gearbox
2020/09/10 00:00


Type Selection Notice For Marine Gearbox:

Marine gearbox has the functions of reverse running, clutch, deceleration and bearing propeller thrust. It is matched with the main engine to form a marine power unit.

Transmission capacity refers to the ratio of the continuous power and rated speed of the engine. The reduction ratio corresponds to the transmission capacity up and down, and should be less than the value in the parameter table.

It is not allowed to use rigid connection between gearbox and engine shafting. It is recommended that the bracket be installed on the same rigid support. If the engine is mounted on an elastic support and the gearbox is mounted on a rigid support, a suitable high elastic coupling should be selected.


Marine Gearbox Technical Parameters
TypeSpeed Input   Range(r/min)Reduction Ratio(i)Transmit   Capacity(kw/rpm)Rated Thrust(KN)Center Distance(mm)Dimensions   mm(LxWxH)(mm)Net Weight(kg)
061000-21002.52  3.05  3.500.0041.8124350x316x48258
16A1000-21002.07  2.48   2.95  3.35  3.83  0.0123.5135442x325x56384
261000-2500

2.50  3.00

3.50

4.00		0.0199
0.0190
0.0177		5135473.5x365x83092
1001500-30001.60  2.00
2.55  3.11
3.59  3.88		0.009
0.007
0.006		3100236x390x42075
1251500-30002.03  2.46
3.04
3.57
4.05
4.39
4.70		0.020
0.018
0.016
0.014
0.013
0.011		5.5125291x454x485115
142
1500-2500
1.97  2.52 3.03
0.030
8.5
142
308x520x540
140
3.54
0.026
3.95
0.023
4.50
0.019
5.06
0.016
5.47
0.013
40750-2000

2.07  2.96

3.44

0.0294
0.0235		8.8142490x670x620225
1701500-2500

1.97  2.52   3.04  3.54  3.96

4.50  5.06

5.47  5.88		0.039
0.031
0.027		16170485x610x656240
120B750-18002.03  2.81
3.73		0.088
0.044		25190605x744x770400
120C1000-2500

1.36  1.48   1.61  1.94  2.45

2.96

3.35

0.10
0.09
0.08		25180432x440x650225
135750-20002.03  2.59  3.04  3.62  4.11
4.65
5.06
5.47
5.81		0.100
0.093
0.088
0.077
0.070		29.4225578x744x830470
138100-25002.00   2.52  3.00 357  4.05    4.450.1130225520x792x760360
D1381000-25005.05  5.63
6.06
6.47		1.110
0.099
0.093		40296494x800x870415
2421000-2500

2.00  2.54   3.04  3.52  3.95

4.53

5.12
5.56
5.88		0.103
0.100
0.094
0.074		30242442x774x763385
270750-25003.00  4.05  4.53  5.12
5.50
5.95
6.39  6.82		0.147
0.134
0.110
0.088		39.2270594x810x868675
300700-25001.87  2.04  2.54
3.00
3.53
4.10  4.47  4.61
4.94
5.44		0.257
0.243
0.221
0.184
0.147
0.125		50264786x930x864740
J300750-25002.04  2.54  3.0  3.47

3.95

0.280
0.257		60264786x930x864740
D300A1000-25004.00
4.48
5.05
5.52  5.90  6.56
7.06
7.63		0.257
0.243
0.221
0.184
0.147
0.125		60355786x1010x1041940
T3001000-23004.73  4.95   5.51  6.03  6.65    7.04

7.54  8.02

8.47

0.243
0.221
0.200		70355722x980x11061120
T300/11000-23008.94  9.450.19670355772x980x11061120
4001000-18001.50  1.77   2.04  2.50  2.86  3.00  3.25  3.33  3.42
4.06
4.61  4.94		0.331
0.279
0.190		82264641x1010x890820
D400A1000-18003.96  4.33  4.43  4.70  5.00

5.53

5.71  5.89

0.331
0.293
0.272		82355641x1010x9881100
T400A1000-21006.09  6.49  6.93
7.42
7.96
8.40
9.00  9.47		0.331
0.309
0.287
0.265
0.243		82375784x992x11301450
T400A-11000-21008.15  8.69  9.27
9.94
10.60

11.37

12.00  12.50

13.96		0.331
0.316
0.297
0.274
0.262
0.204		120465869x1100x12751500
600A1000-21002.00  2.48  3.00
3.58
3.89		0.48
0.44
0.40		90320745x1214x11261300
D600A1000-21004.18  4.43
4.70
5.00
5.44  5.71		0.48
0.46
0.44
0.40		90415745x1214x12711550
T600A1000-21006.06
6.49
6.97  7.51
8.04
8.66
9.35		0.44
0.40
0.37
0.33
0.29
0.28		90415821x1214x12711650
T600A-11000-21007.04  7.69  8.23
8.82
9.47
10.10  10.80
11.65
12.57
13.64
14.44
15.91		0.441
0.412
0.400
0.375
0.353
0.331
0.272
0.257
0.204		140500878x1224x13461700
D800600-18003.00  3.43  3.96  4.17  4.39
4.90
5.47
5.89		0.625
0.588
0.551
0.515		1104501056x1280x13412200
T800600-18004.95  5.57  5.68  5.93  6.43
6.86
7.33
7.84
8.40		0.625
0.588
0.551
0.515
0.480		1404501056x1280x14252700
T800-1600-1800

6.91  7.28  7.69  8.13  8.60

9.12  9.68

10.30
10.98
11.76
12.43
13.17
13.97
14.85
15.82
16.58
17.91

20.12

0.625
0.609
0.575
0.549
0.520
0.491
0.463
0.435
0.408
0.382
0.378
0.278		2205821152x1360x15573200
