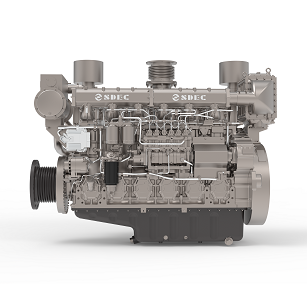

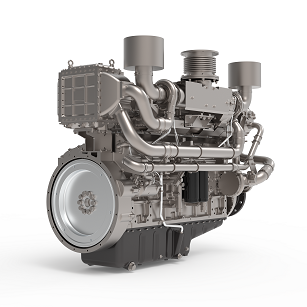

K Series Marine Engine
2020/09/03 00:00



Product introduction:

Sc25k series marine engine is a new generation of medium and high speed marine diesel engine, which has accumulated many years of experience in ship engine design and development of Shangchai company, and has absorbed excellent and mature technologies at home and abroad.

This series of products fully consider the characteristics of marine main engine, such as multi-purpose, multi working conditions, high reliability and high economic requirements, which is greatly improved compared with similar products in the market. With beautiful appearance, compact structure, large speed range, strong power performance, large low-speed torque reserve, low oil and diesel consumption, easy to use, it is the ideal main engine power for new generation of transport ships, fishing boats, engineering ships and other ships, as well as 350-550kw marine generator set market.


Product features:

1. Gantry body, rear gear chamber, good rigidity, low vibration and low noise;

2. Four valve structure, one cylinder and one cover, easy to use and maintain;

3. Integrally forging high strength crankshaft and connecting rod with good reliability;

4. Double supercharger intake system, more efficient and full intake, compact structure and beautiful appearance;

5. The torque reserve is large, which can meet the requirements of medium and heavy loads for medium and high speed torque, and the reserve is 20-30%;

6. Low cost of use: lower fuel consumption and oil consumption rate, greatly reducing the use cost of customers.

7. Safe and reliable: after more than 3000 hours of durability test, the main parts are in good condition.


K   Series Technical Parameters
TypeIn-Line、WaterCooled、4-Stroke、Wet cylinderCylinder No.6
Bore&Stroke170x185mmDisplacement25.18L
Min.BSFC195g/kW.hOil Consumption≤0.3g/kw.h
Valve No/Cylinder4Idle Speed550±25r/min
Ignition   Order1-5-3-6-2-4Compression ratio16:1
Noise≤110dB(A)Emmision standardIMOⅡ/Stage I
Start ModeElectric / GasFlywheel &   housingSAE  0  18
Rotation Direction (Face the Flywheel)Anti-clockwiseOverhual≥20000h
K Series Model List
SeriesEngine ModelAspirationRated Power kw/psRated Speed r/minFuel SupplyNet Weight kg
Main engineSC25K580.13CA1Turbo &   Intercooler417/5671350EUP2850
SC25K620.15CA1Turbo &   Intercooler447/6081500EUP2850
SC25K670.13CA1Turbo &   Intercooler480/6531350EUP2850
SC25K665.15CA1Turbo &   Intercooler480/6531500EUP2850
SC25K700.18CA1Turbo &   Intercooler505/6871800EUP2850
SC25K750.18CA1Turbo &   Intercooler540/7341800EUP2850
SC25K760.15CA1Turbo &   Intercooler545/7411500EUP2850
SC25K800.15CA1Turbo &   Intercooler576/7831500EUP2850
SC25K800.18CA1Turbo &   Intercooler576/7831800EUP2850

Auxiliary engine

SC25K490.10CF1Turbo &   Intercooler3531000EUP2850
SC25K570.10CF1Turbo &   Intercooler4121000EUP2850
SC25K570.15CF1Turbo &   Intercooler4121500EUP2850
SC25K650.10CF1Turbo &   Intercooler4711000EUP2850
SC25K650.15CF1Turbo &   Intercooler4711500EUP2850
SC25K730.15CF1Turbo &   Intercooler5291500EUP2850
SC25K820.15CF1Turbo &   Intercooler5881500EUP2850

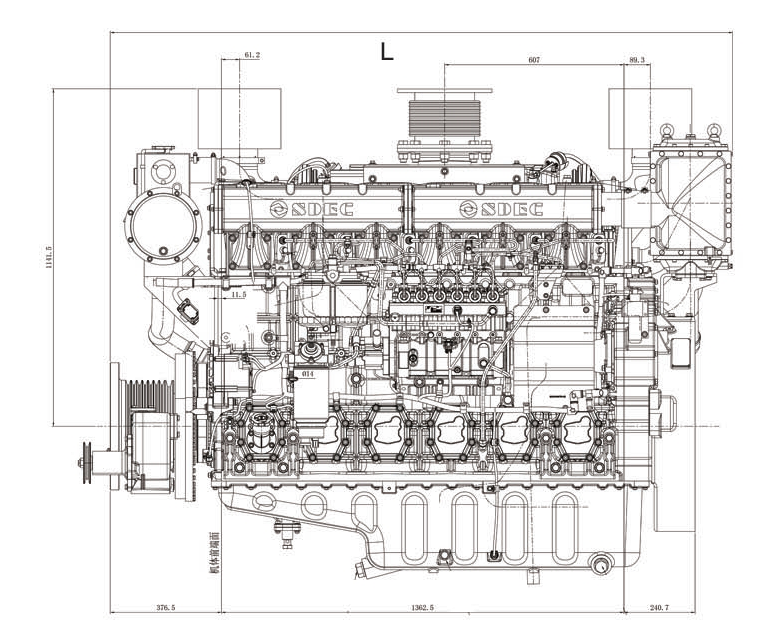

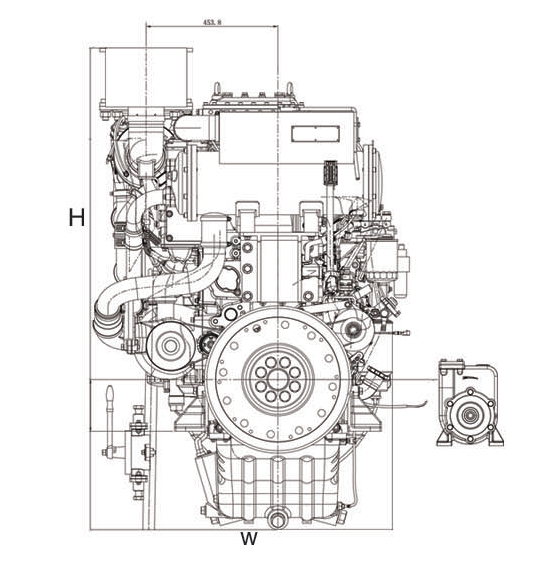

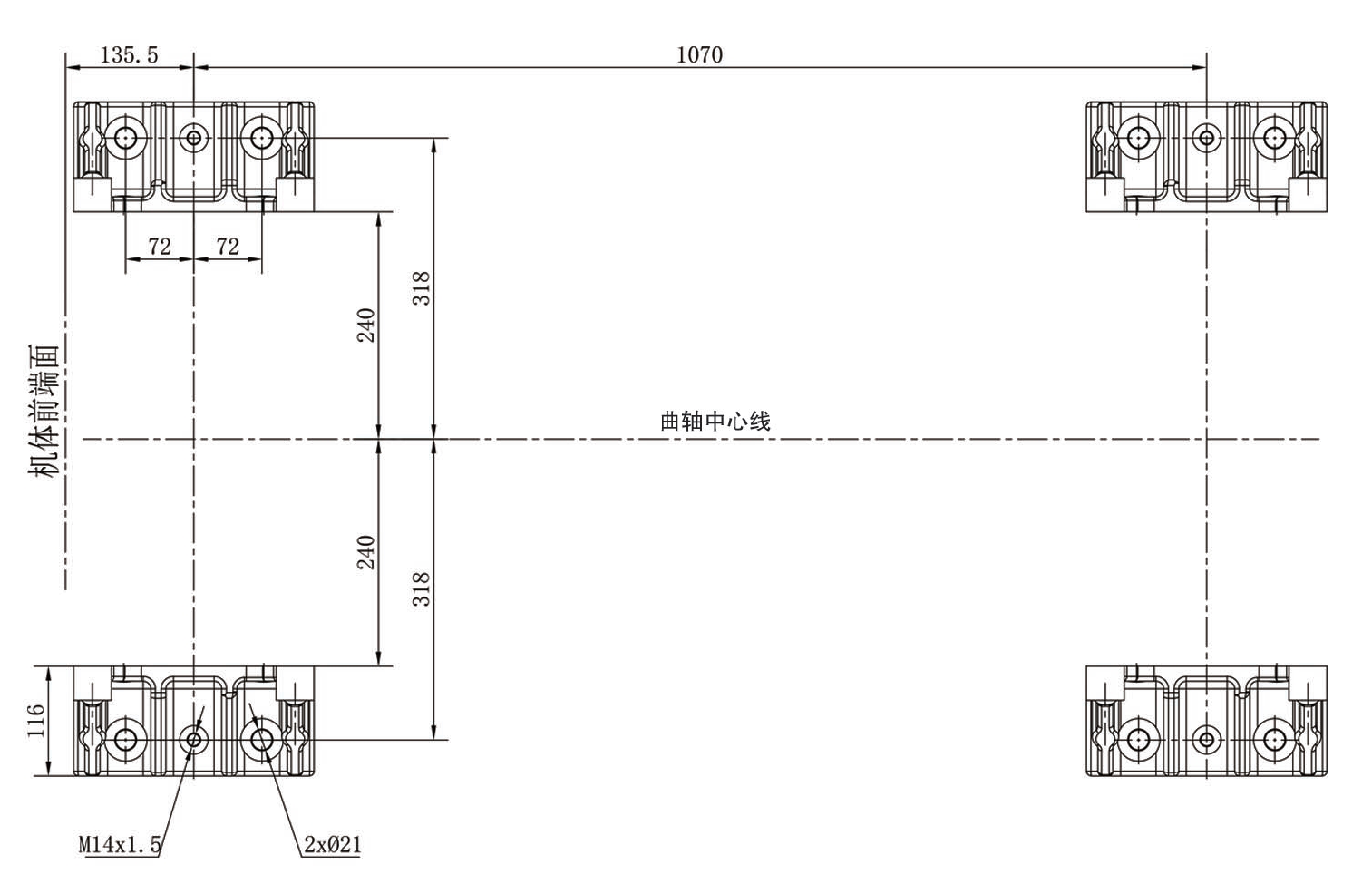

Outline and installation dimension drawing


L:2107mm   W:1030mm  H:1658mm
