SME Series Engine forGenset
2020/09/04 00:00

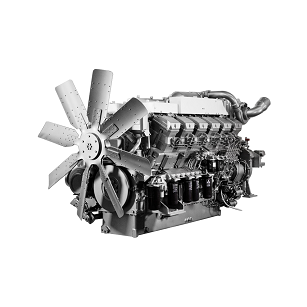

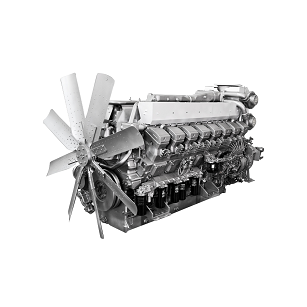

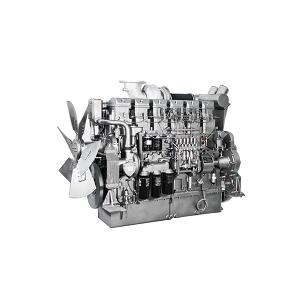

S6R Model S12R Model S16R Model


Company description:

Shanghai MHI Engine Co., Ltd. (SME) is a joint venture jointly established by Shanghai diesel engine Limited by Share Ltd and MITSUBISHI Heavy Industries Co.,Ltd.

The company mainly produces S6R2/S12R/S16R series engines, which are licensed by MITSUBISHI heavy industry technology. This series of products are mainly used for land generating units, and the power coverage is 500kW to 2000kW.

SR series products are the main products of the large engine in non - Road industrial production by MITSUBISHI heavy industry. Besides the local factories in Japan, they also produce the same series of products in the French factory. It is mainly used for land power station, marine main engine and auxiliary machine. Products sell well in the European and American markets, and have been highly recognized by users in China. On the platform of the series of diesel engines, there are land power stations that meet the US EPA2 emissions and marine diesel engines that meet IMO2 emissions.


Description:

S6R2/S12R/S16R series of engines are produced by SME. The technical standards, manufacturing level and quality control have always been consistent with MITSUBISHI HEAVY INDUSTRIES. Benefited from the integration of fuel system and engine development by MHI, SME can achieve the best performance, ever-reliable high power, high stability and low emission.


R Series Technical Parameters
Series ModelTypeCylinders*Bore&stroke(mm)Displacement(L)100%Fuel Consumption(L/h)Oil total(L)Oil consumption rate(g/kw.h)
S6RS6R2-PTA-CIn-Line、WaterCooled、4-Stroke、4-Valves6x170x22029.96123920.4
S6R2-PTAA-C6x170x22029.96148920.4
S12RS12R-PTA-C12x170x18049.032351800.4
S12R-PTA2-C12x170x18049.032591800.4
S12R-PTAA2-C12x170x18049.033171800.4
S16RS16R-PTA-C16x170x18065.373512300.4
S16R-PTA2-C16x170x18065.373882300.4
S16R-PTAA2-C16x170x18065.374152300.4
S16R2-PTAW-C16x170x18079.94642600.4


R Series Model List
Emissions   Standard:Stage II
SeriesEngine ModelAspirationRated Power kWRated Speed r/minStandby Power kwNet Weight kgDimensions mm(LxWxH)
S6RS6R2-PTA-CTurbo &   Intercooler575150063529001946x1051x1578
S6R2-PTAA-CTurbo &   Intercooler645150071028501905x1196x1726
S12RS12R-PTA-CTurbo &   Intercooler10801500119053502522x1435x1592
S12R-PTA2-CTurbo &   Intercooler11651500128554002568*1401*1592
S12R-PTAA2-CTurbo &   Intercooler12771500140453002520x1360x1978
S16RS16R-PTA-CTurbo &   Intercooler14501500159067593223x1360x1810
S16R-PTA2-CTurbo &   Intercooler16001500176068503121x1401x1810
S16R-PTAA2-CTurbo &   Intercooler16841500189566503075x1360x1862
S16R2-PTAW-CTurbo &   Intercooler19601500216777503118x1478x2030
