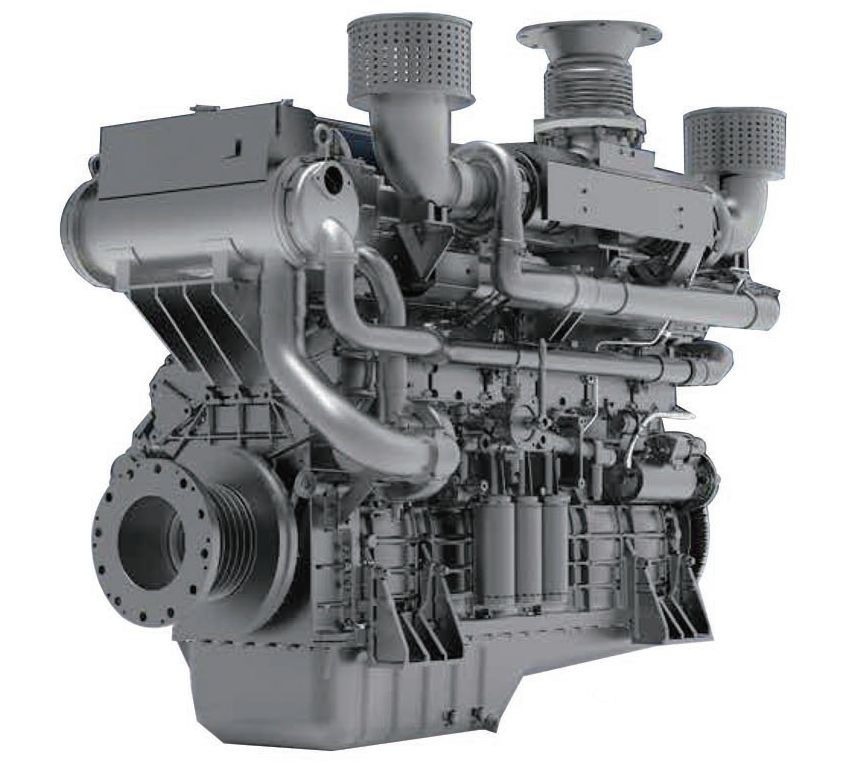

W Series Marine Engine
2020/09/02 00:00
SC33W ModelSC38W Model

Description:

The W series engine is designed for meeting the high power demands of heavy duty marine power systems. It is a new generation of marine diesel engine which is researched and developed on the basis of military products, and by introducing and absorbing internationally advanced technology. Its various technical indexes all have reached advanced levels.

This series engine is characterized by outstanding fuel economy, high torque reserve, compact structure, high reliability, good emission, etc. It is widely used in inland and coastal shipping, fishing boats, working ships, passenger ships and other ships, as well as 400-600KW marine generator sets.


Features:

1.Four-valve per cylinder, P11 high quality oil pump and double turbocharger configuration can increase air flow to make the combustion more full. The minimum specific fuel consumption is 193g/kW.h and the oil consumption is 0.3g/kW.h,delivering low operating costs.

2.With a gantry type cylinder block structure and rear gear chamber, this engine has features of compact structure, high overall rigidity and smooth operation. And it is strictly checked and verified according to MHI standard with high reliability. And its power has improved by 17% compared with the domestic similar products. The torque is more than 4500N.m, the power covers a wide range, and the acceleration performance is good.

3.This engine is equipped with dual-layer high-pressure oil pipe, dual-booting flywheel house with optional single and dual booting and optional electric/manual priming oil pump, having complete configuration and wide application.

4.W series engine adopts one cylinder and one head structure and the overall appearance is simple, with good accessibility and convenient maintenance.


W   Seies Technical Parameters
TypeIn-Line、WaterCooled、4-Stroke、Wet cylinderCylinder No.6
Bore&stroke

SC33W:180x215mm

SC38W:180x250m

Displacement

SC33W:32.8L

SC38W:38.16L

Min.BSFC195g/kW.hOil Consumption≤0.4g/kw.h
Valve No/Cylinder4Idle speed550±25r/min
Ignition   order1-5-3-6-2-4Compression ratio15:1
Noise≤110dB(A)Emmision standardIMOⅡ/Stage I
Start modeElectric / GasFlywheel & housingSAE  0  18
Rotation Direction (Face the Flywheel) Anti-clockwiseOverhaul≥20000h


W Series Model List
SeriesEngine ModelAspirationRated Power kw/psRated Speed r/minFuel SupplyNet Weight kg
Main engineSC33W625.1CA2Turbo &   Intercooler450/6121200Mechanical3400
SC33W680.1CA2Turbo &   Intercooler490/6661200Mechanical3400
SC33W680CA2Turbo &   Intercooler490/6661350Mechanical3400
SC33W735.2CA2Turbo &   Intercooler529/7201200Mechanical3400
SC33W735CA2Turbo &   Intercooler529/7201350Mechanical3400
SC33W770.1CA2Turbo &   Intercooler555/7551200Mechanical3400
SC33W825.2CA2Turbo &   Intercooler588/8001200Mechanical3400
SC33W825.1CA2Turbo &   Intercooler588/8001350Mechanical3400
SC33W825CA2Turbo &   Intercooler588/8001500Mechanical3400
SC33W880.1CA2Turbo &   Intercooler640/8701350Mechanical3400
SC33W880CA2Turbo &   Intercooler640/8701500Mechanical3400
SC33W950CA2Turbo &   Intercooler690/9381500Mechanical3400
SC33W1000CA2Turbo &   Intercooler725/9861500Mechanical3400
SC33W1100CA2Turbo &   Intercooler792/10771500Mechanical3400
SC38W825.10CA1Turbo &   Intercooler605/8231000EUP4250
SC38W880.12CA1Turbo &   Intercooler650/8841200EUP4250
SC38W950.12CA1Turbo &   Intercooler700/9521200EUP4250
SC38W1000.12CA1Turbo &   Intercooler735/10001200EUP4250
Auxiliary engineSC33W580CF2Turbo &   Intercooler412/5601000Mechanical3400
SC33W600.1CF2Turbo &   Intercooler431/5861500Mechanical3400
SC33W680CF2Turbo &   Intercooler490/6661500Mechanical3400
SC38W680.10CF1Turbo &   Intercooler490/6661000EUP4250
SC33W735CF2Turbo &   Intercooler530/7201500Mechanical3400
SC38W770.10CF1Turbo &   Intercooler556/7561000EUP4250
SC33W830CF2Turbo &   Intercooler595/8091500Mechanical3400
SC38W825.10CF1Turbo &   Intercooler593/8061000EUP4250
SC33W900CF2Turbo &   Intercooler647/8801500Mechanical3400
SC38W930.10CF1Turbo &   Intercooler668/9091000EUP4250

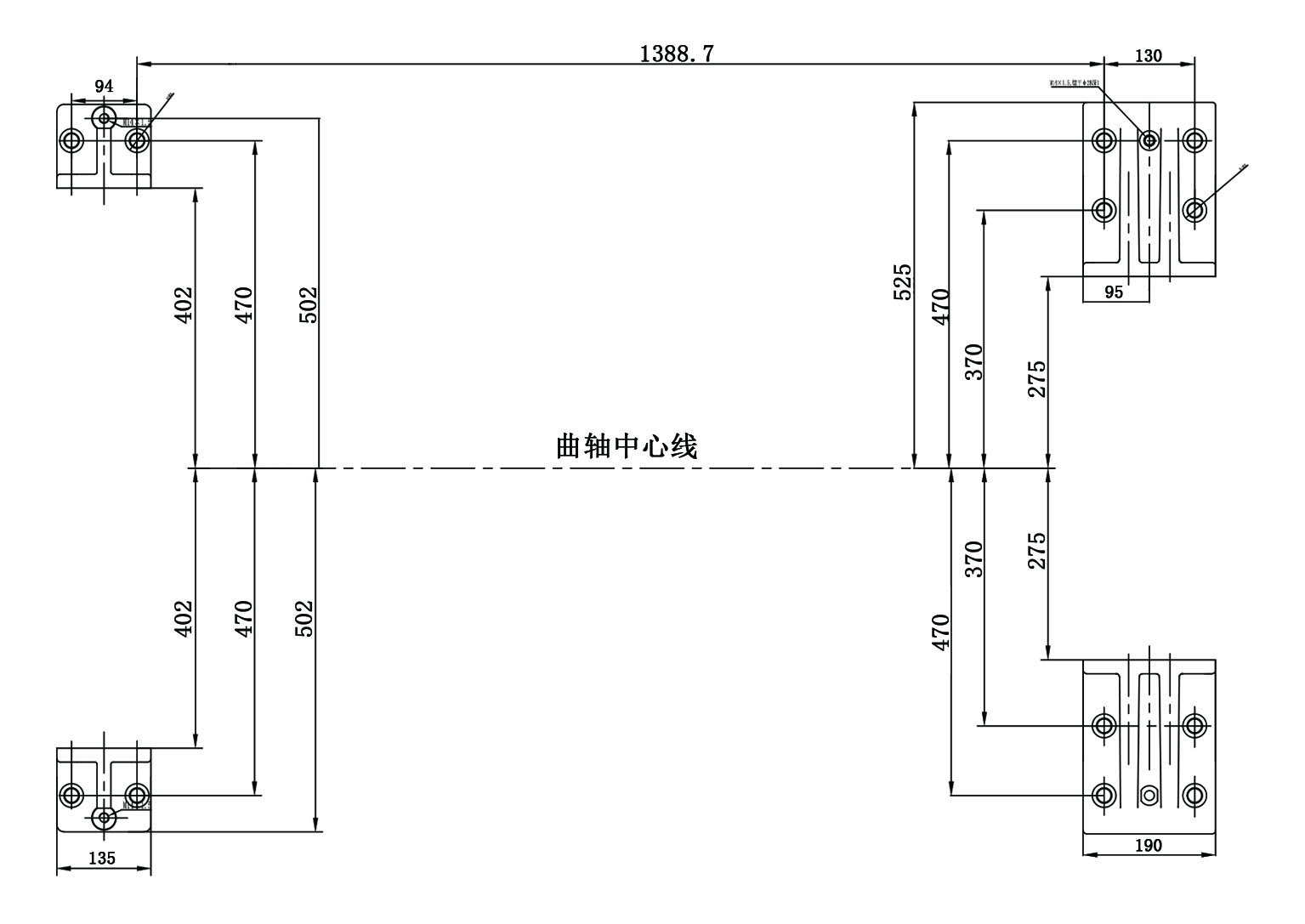

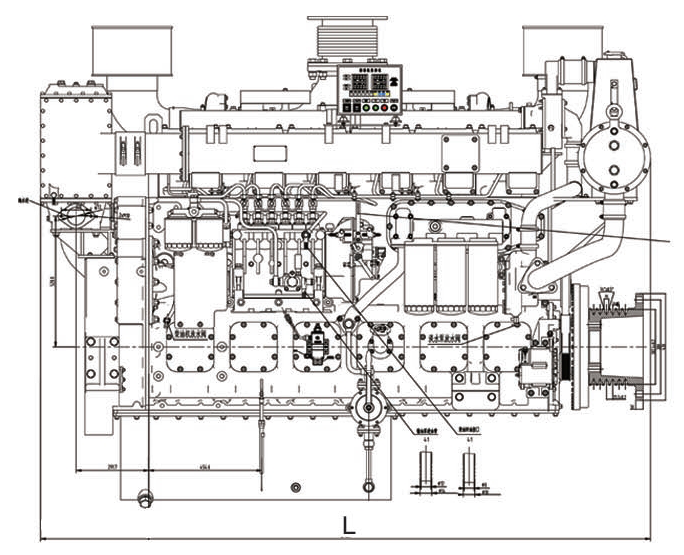

Outline and installation dimension drawing


L:2453mm  W:1235mm  H:1951mm
